Introducing the VR-P25U, a lightweight and portable handheld RF amplifier designed for optimal performance.

Features:
- Automatic Switching
The VR-P25U is compatible with FDMA modes including C4FM, D-Star, NXDN, IDAS, dPMR, P25, MPT1327, and more.

- High Output Power
With an input power from a handheld radio of 2-6 watts, the VR-P25U can achieve output power of up to 40 watts.

- UHF Band Support
This amplifier operates in the UHF range of 400-470 MHz.

- Compact Design
Measuring 35 x 115 x 135 mm, it is ideal for outdoor use, such as Field Days, or for mounting in vehicles.

- Certifications
All VGC amplifiers are certified by CE and FCC.

- Multi-functional
Features include a voltage stabilizer, overheating protection, RF sensing, auto power off, and harmonic filters. It also has integrated speaker and microphone connections, along with a status display for current operating conditions.

Three Primary Modes of Amplification:

Radio Controlled

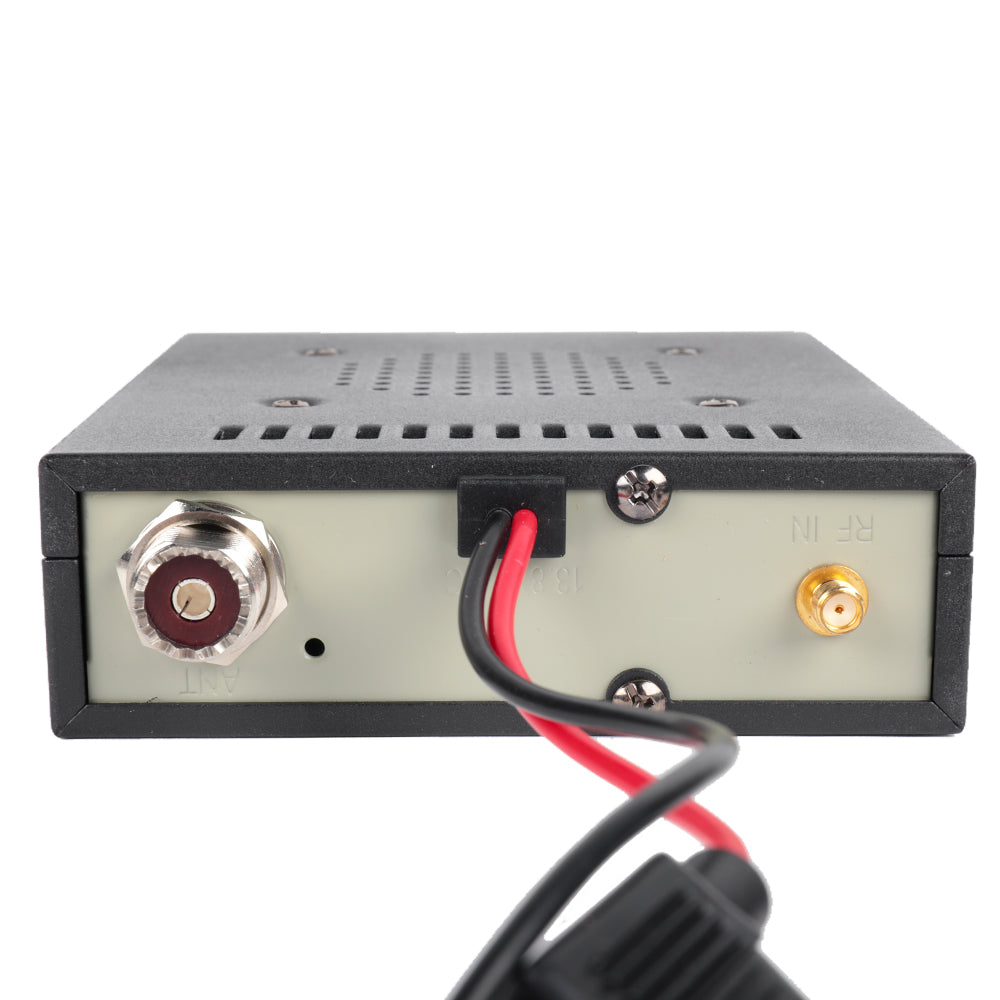

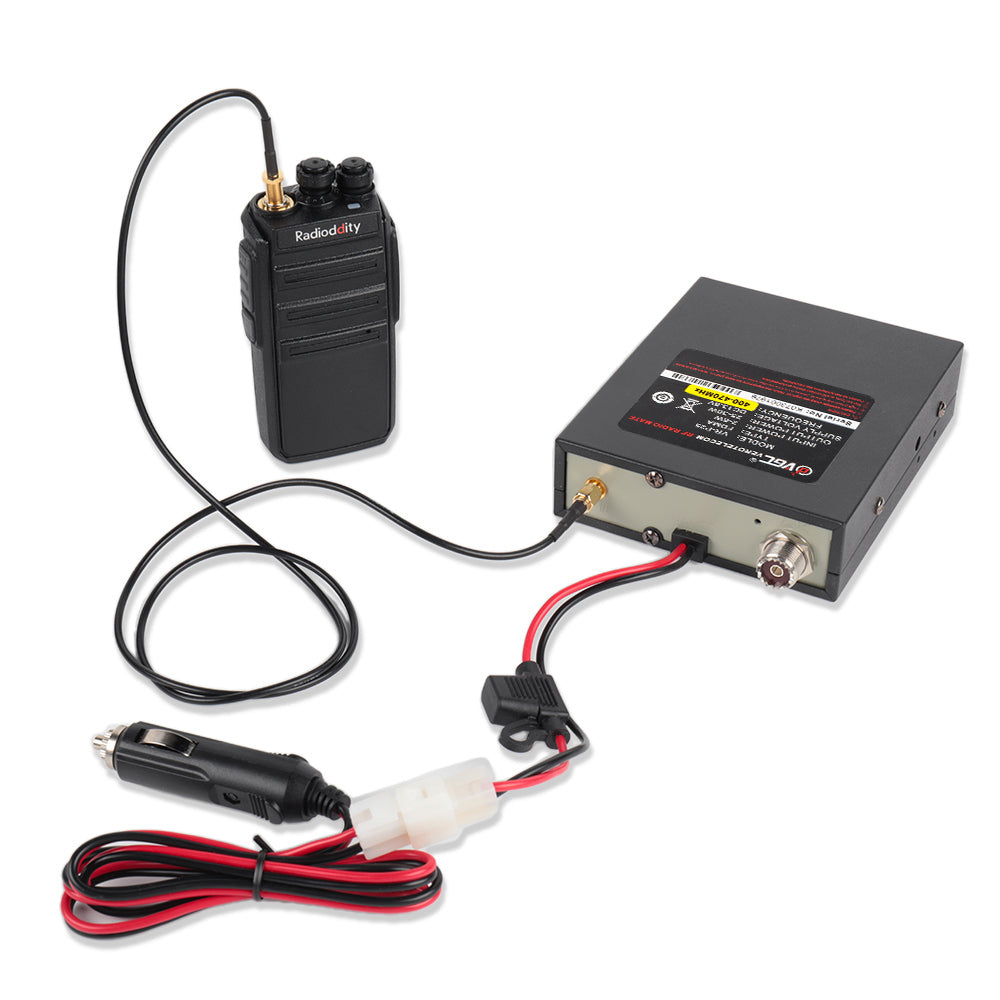

Connect the antenna output of your handheld transceiver to the RF-IN connector on the rear panel of the amplifier using the Radio to Amplifier RF cable. This allows you to transmit and receive using your handheld radio while amplifying the output signal.

Accessory Controlled
Connect the antenna output of your handheld transceiver to the RF-IN connector on the amplifier. Then, connect a speaker microphone, headset, or compatible accessory to the radio. This setup enables you to transmit and receive through the accessory while amplifying the output signal.

Amplifier Controlled

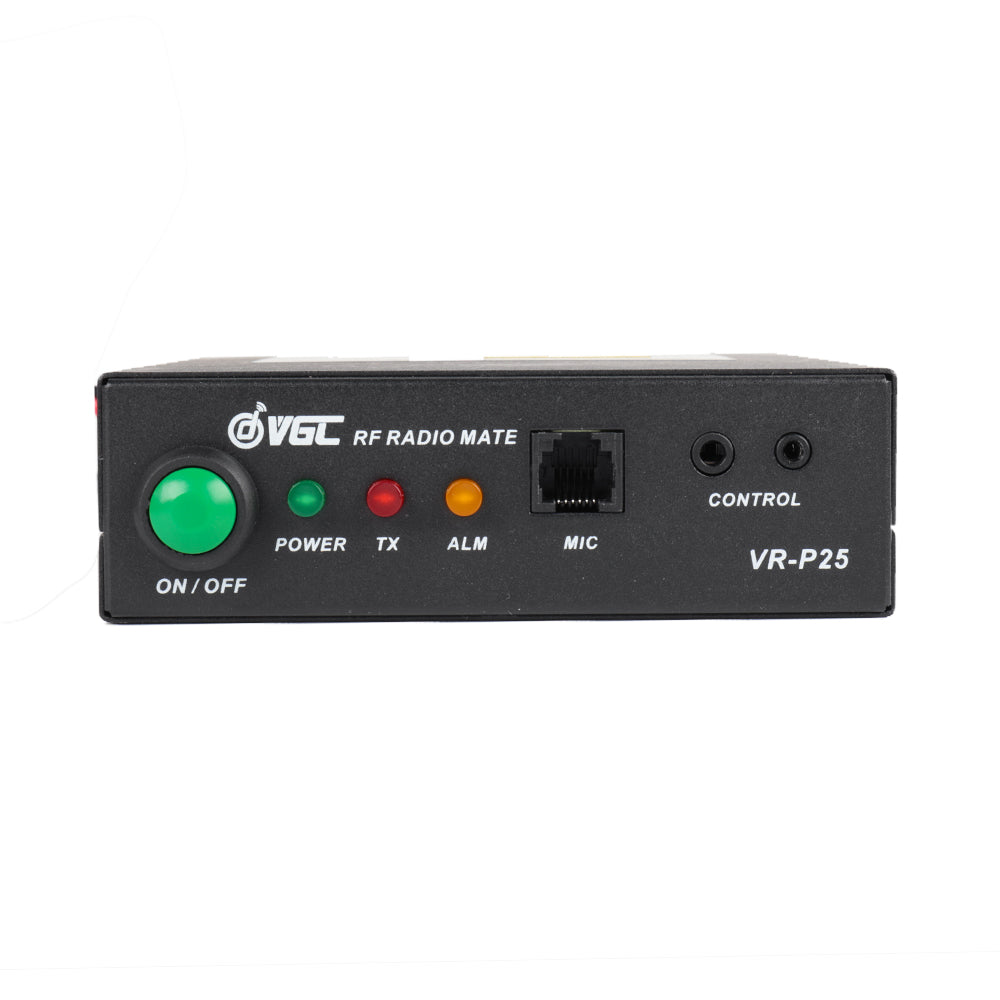

Connect the speaker microphone to the MIC jack on the front panel of the amplifier. Connect the antenna output of the handheld transceiver to the RF-IN connector on the amplifier using the Radio to Amplifier RF cable. Finally, connect the accessory port of your radio to the Control jack on the front panel of the amplifier using the Amplifier Control Cable. This allows you to transmit and receive using the speaker microphone on the amplifier while incoming audio is relayed through the loudspeaker.

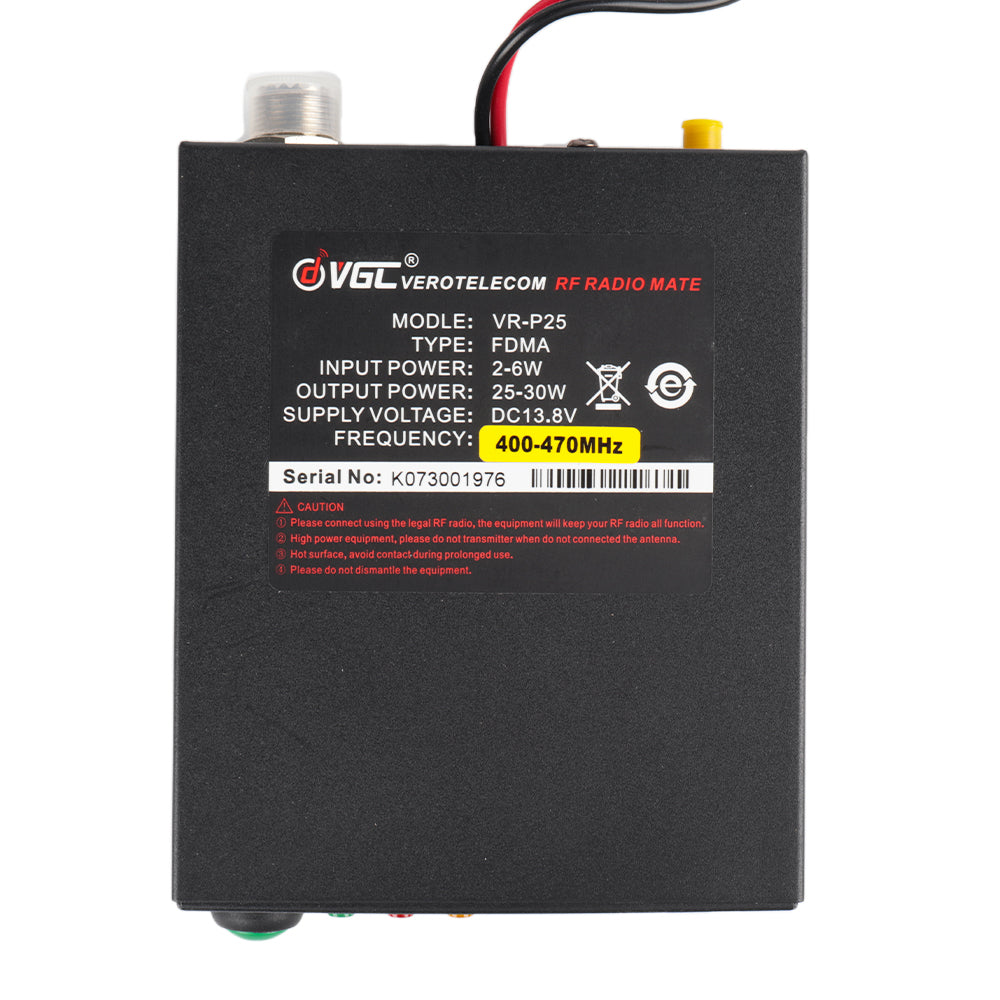

Specifications:
- Frequency Range: 400-470 MHz
- Power Supply: 13.8 VDC (± 15%), 5.5 A maximum
- Input RF Power: 2 - 6 W (± 10%)
- Output RF Power: 20 - 40 W
- Size: 5.5 in D x 4.5 in W x 1.4 in H (135 mm D x 115 mm W x 36 mm H)
- Weight: 1.5 lbs. (680 g)

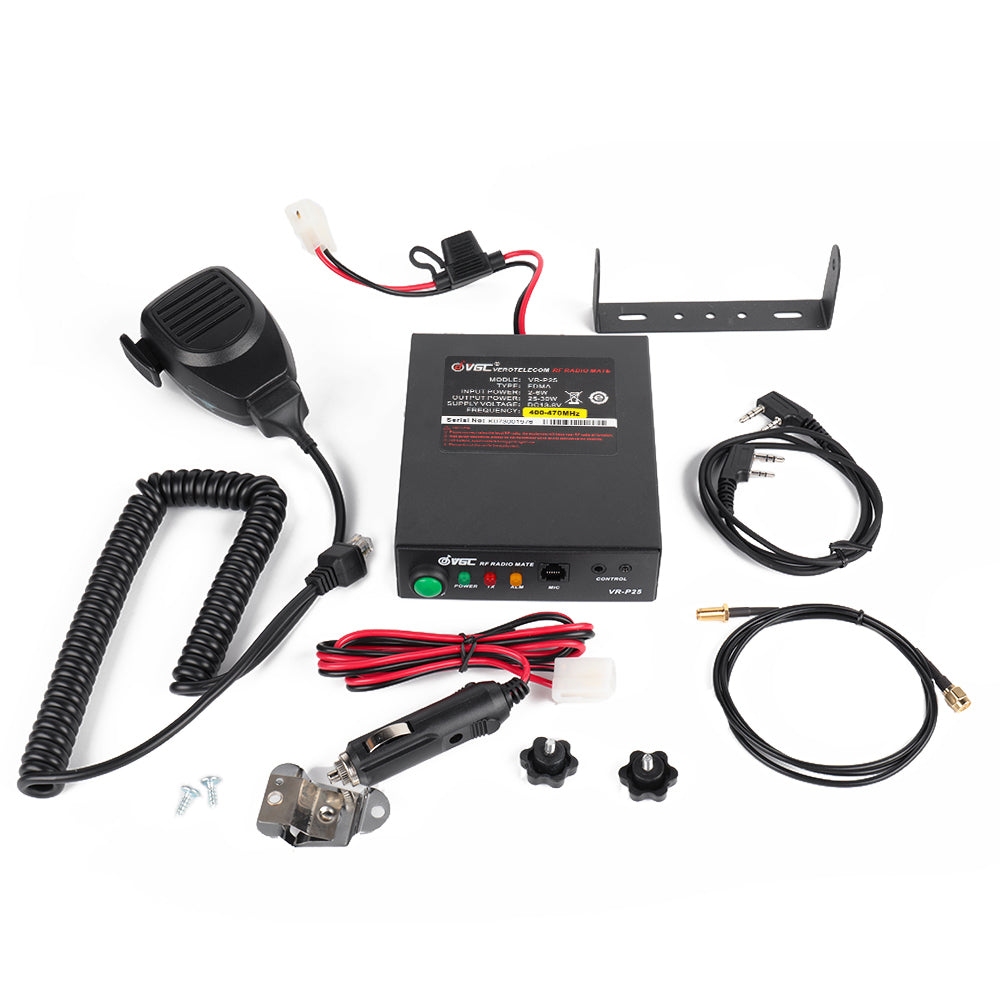

Delivery Includes:
- 1 x VGC VR-P25U Amplifier
- 1 x Speaker Microphone
- 1 x SMA Female Cable
- 1 x Power Supply
- 1 x Mounting Bracket
- 1 x Remote Control Cable (Standard K1)
- 1 x Screw Set
- 1 x User Manual
