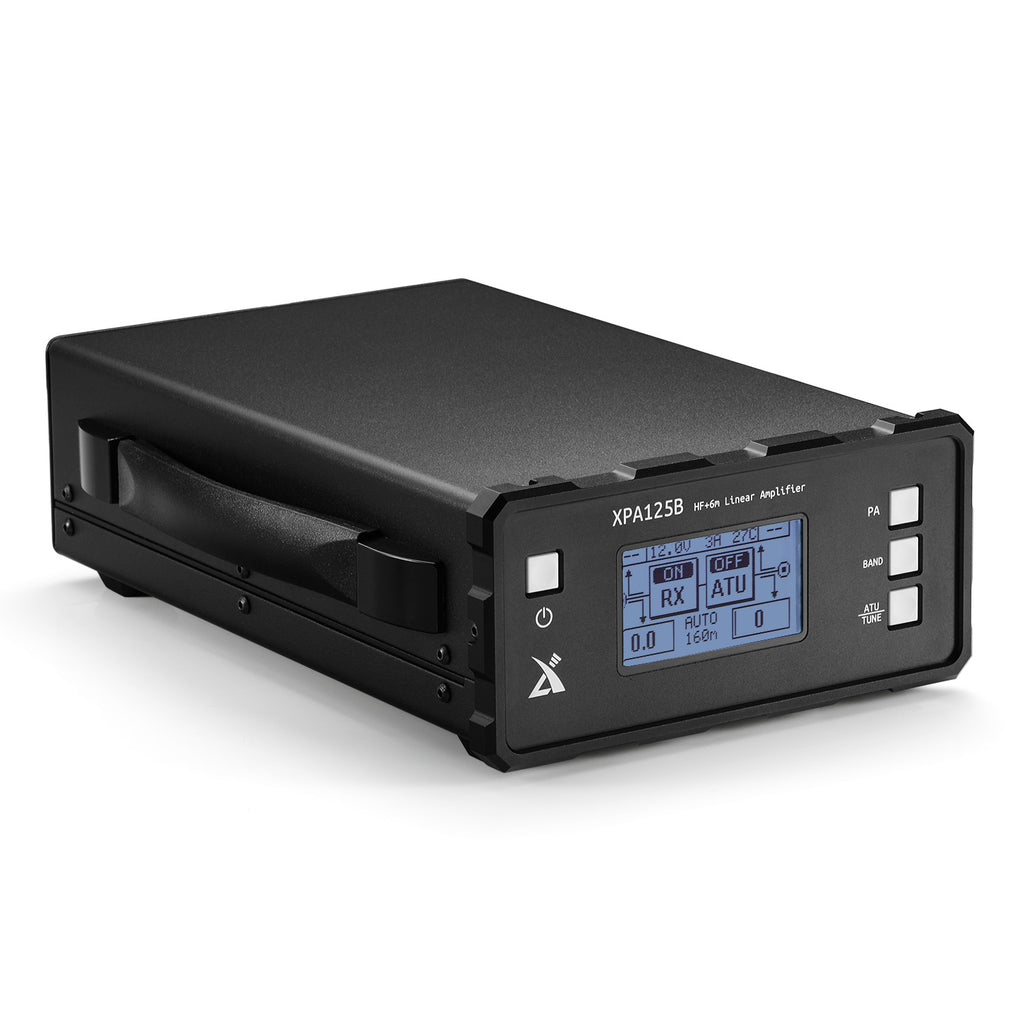

The Xiegu XPA125B (new version) is a 100-125 watt solid-state linear power amplifier for frequencies from 0.5 to 30Mhz and 50 to 54Mhz, with an integrated antenna tuner (1.8 to 30Mhz) and a big and bright display for monitoring the amplifier status. It is equipped with protections: temperature, overcurrent, detection of input and output. It's perfect for your QRP radio or low power SDR transceiver.
The XPA125B HF amplifier can be used with any QRP HF transceiver and is compatible with the Xiegu G90, X108G, X5105, X6100 and X6200 and it's with automatic bandwidth and output power control function (ALC)

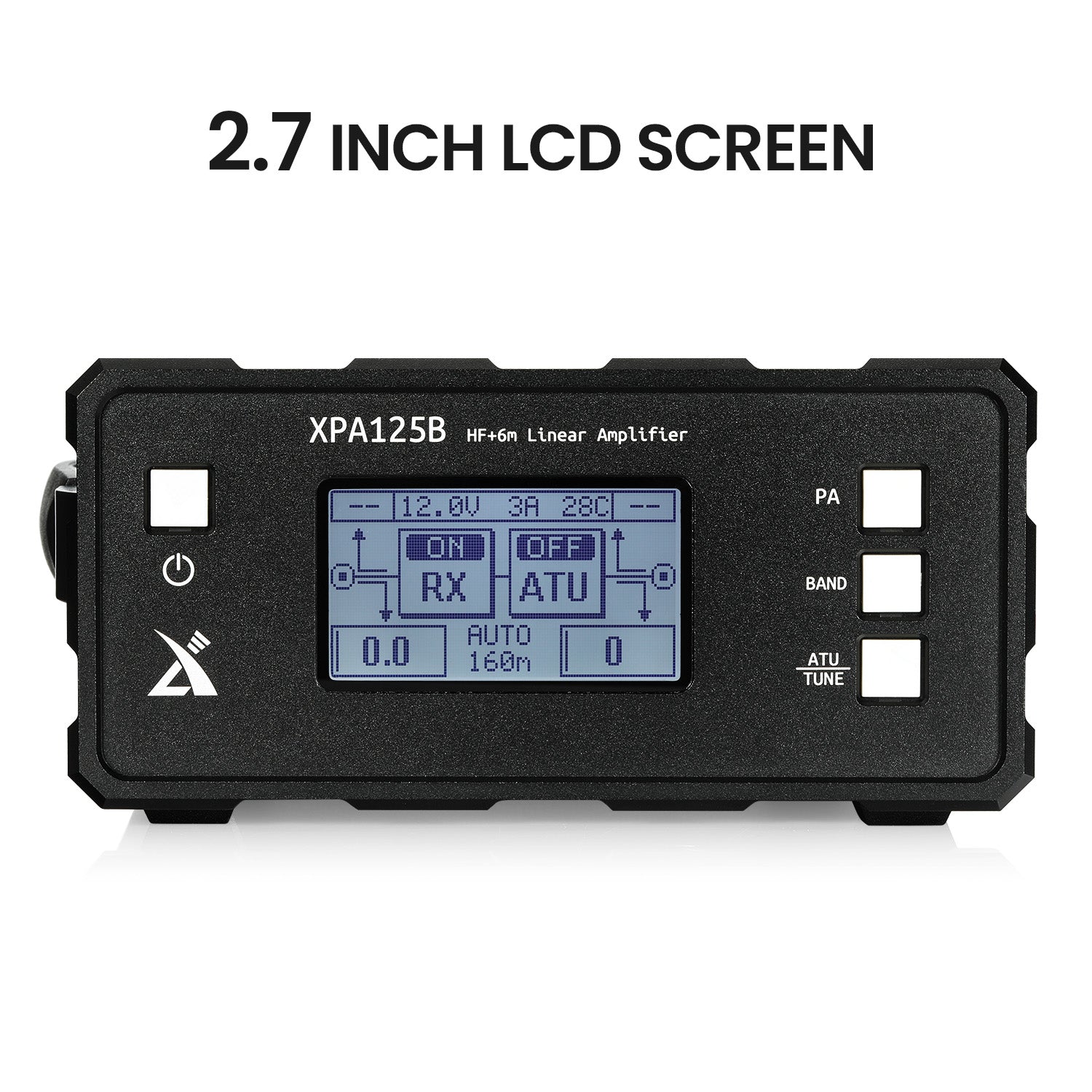

The large backlit 2.7 inch LCD display screen shows input/output power, SWR, Voltage, Current, Temperature, amplifier status as well as warning messages making the operation of this modern amplifier simple and also user friendly. The serial connection allows you to hook it up the computer to update the firmware.
Specifications:
Operating frequency: 0.5~54MHz
Input power: ≤5W
Maximum output RF power: 1.8-30MHz ≥110W | 50-54MHz ≥ 90W
Maximum Ambient Operation Temp: 131 Fahrenheit(55 Celsius)
Gain: 13 dB (+/-2dB)
Spurious Suppression: >50 dB
Supply Voltage: 12-15 Volts DC
Transmit Current Draw: @ max output 30 Amps
Current parameters: Standby 260mA @Max Launch: 30A@Max
Receive Current Draw: @ max 700 mA
ATU Frequency Range: 1.8-30 MHz & 50-54 MHz
ATU Tuning Range: 14-500 Ω
Working voltage: 12V~14.5V DC
Machine size: 260*150*100mm | 10.24*6.3*2.56in [Excluding knobs, handles, etc.]
Weight:1.6kg | 3.53lb
Compatible with
Xiegu G90, Xiegu X108G, Xiegu X5105, Xiegu X6100, Xiegu X6200
Yaesu FT-817, Yaesu FT-818
Recommended Radio & Accessories
Expansion Port for connection with a Xiegu G90 or X5105 Transceiver
radio
HF transceiver
radio
& Cable
& Cable
100W Portable Power Station
What's in the box?
1 x Xiegu XPA125B 100W Linear Power Amplifier
1 x Control Cable for Xiegu Transceivers[Except X6100/X6200 which require the additional ]
1 x DC Power Cable
1 x USB Cable for PC Connection
1 x User Manual
