Note: DO NOT use CHIRP to program this radio, or it may cause damage to the radio.

Meet the Leixen VV-898, the extremely compact Dual Band UHF/VHF Mobile Radio! With 199 memory channels, and up to 10 watts of power, the VV-898 is tiny transceiver that delivers big for little cost.

The VV-898 features 199 programmable channels with channel scanning, dual watch, CTCSS/DCS encode/decode, DTMF, and 1750 Hz burst tone. Other features include 65-108Mhz commercial FM radio, individual call, group call, user-defined channel names, VOX capability and an emergency alarm.

The Leixen VV 898 has a backlit front panel LCD display and a built-in 400mW speaker that belts out the audio. The hand microphone has a lighted DTMF keypad and is connected to a 23" coiled cord that stretches to well over five feet.
The best feature, of course, is its tiny footprint. Small enough to fit in the palm of a hand, yet big on transmission, reception and overall sound, The Leixen VV-898 is a great choice for small vehicles and cabs with crowded compartments, densely-packed dashboards and cramped quarters where space is very limited. The included mounting bracket allows for simple installation and keeps your 898 securely attached where ever it goes.

Functions:
1. Dual band: 136-174MHz/400-470MHz/245MHz (Receive only)
2. Dual Reception/Dual Display
3. Voice Companding and Scrambler
4. Multi silent mode (QT/QTADT/QTXDT)
5. DTMF encoding and DTMF decoding
6. PTT IDVoice broadcast PTT ID
7. All calls, group calls and selective calls
8. Monitor, RX Inhibit, RXTX Inhibit and Emergency Alarm
9. FM Radio87.5MHz-108MHz
10. Scan/Scan add
11. Channel name edit available
12. 199 memory channels
13. High/Low power (10W/4W)
14. APO (Auto Power Off)
15. TOT (Time-out timer)
16. Font Set (Big/Small)
17. VOX (Level adjustable)
18. Busy channel lockout
19. Keyboard lock (Auto/Manual)
20. Multi scan mode (TO/CO)
21. Channel steps (2.5K/5K/6.25K/10K/12.5K/25K)
22. Wide/Narrow band selection (25KHz/12.5KHz)
23. TX Stop
24. Talk Around
25. Beat frequency
26. Reverse frequency function
27. 1750Hz burst tone
28. Four key programmable
29. Lease Function (can program lease time of the radio at an exact time
30. Input frequency by using Keypad
31. Wireless changing frequency
32. Timepiece
33. PC software disable frequency input
34. Passwords for menu functions Set
35. PTT Times per Minutes Set
36. All/Function reset
37. 13.8V DC Power Supply
38. Size: 120*85*40mm
39. Antenna connector type: SO-239
40. 107 groups DCS/58 groups CTCSS(PL) Tones

Specifications:

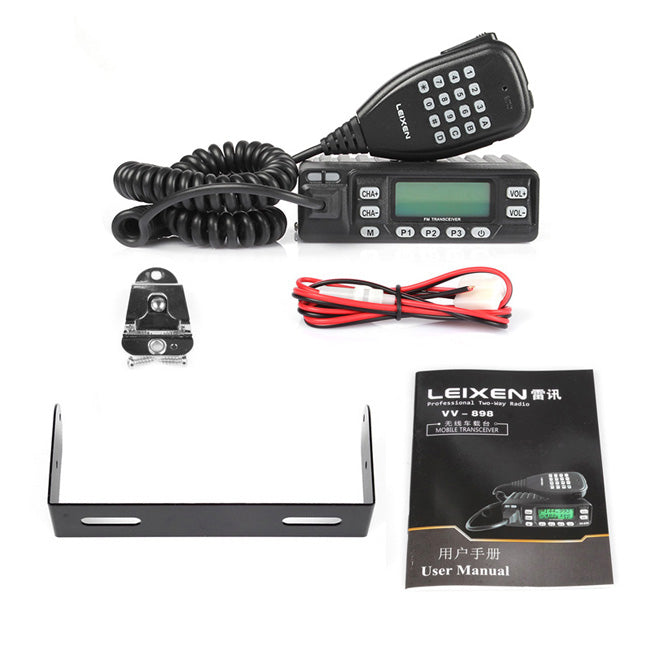

Package:
1x Mobile transceiver LX VV-898
1x DC Power Cable
1x Bracket
1X Bracket Screw
1x User Manual
1x Free Programming Cable
