Radioddity GA-510 is a dual-band tri-power handheld radio based on a new generation chip with up to 10W of high power output. In addition, the GA-510 has many other useful functions such as dual-channel monitoring, VOX, voice prompt, and manual programming.

3 Ways of Scanning
GA-510 has three different scanning options (time scanning, carrier scanning, search scanning) for your use to meet various requirements.

Display Lowercase and Punctuation
Unlike other radios, GA-510 is completed with a bigger screen which can contain up to 10 characters long; letters (uppercase, lowercase), numbers, and punctuation are available.

SOS Alarm Function
Like no other analog radios, GA-510 comes with an SOS button at the top of the radio. You can activate the alarm by simply pressing and holding the orange button for 2 seconds. The alarm will go to other radios with the same frequency.

154 CTCSS / DCS
GA-510 supports CTCSS, DCS, and DTMF tones/codes. In the US, most repeaters require CTCSS/DCS for access, also allowing you to make group calls with a party, offering you more sub-channels for communication without interferences.

Highlight Features
10W/5W/1W Tri-power
Manual Programming
DTMF Function
SOS Alarm Button
CTCSS / DCS / Tone-burst
3 Ways of Scanning Function
Dual Band Dual Watch Dual Display
Frequency / Channel Mode Switching

Other Features
VOX
Voice Prompt
Power Saving
Beep Prompt
Busy Lockout
128 Channels
Tone Scanning
Keypad Auto-Lock
Tx Over Time Setting
Backlight Time Setting
Wide/Narrow Bandwidth

Specifications
Frequency range (MHz): VHF 136-174MHz | UHF 400-480MHz
Memory channels: 128
Supply voltage: DC 7.4V
Mode of operation: Simplex or semi-duplex
Frequency step (kHz): 2.5K/5.0K/6.25K/10.0K/12.5K/20.0K/25.0K/50.0K
Frequency stability: ±2.5ppm
Antenna impedance: 50 Ohm
Operating temperature: -20°C to +60°C
Duty cycle: 03/03/54 min. (Rx/ Tx/ Standby)
Consumption: ≤75mA (standby) | 380mA (reception) | ≤1.4A(transmission)
Radio weight (g): 0.66lb | 300g
Dimensions (mm): 4.27in x 2.17in x 1.17in | 120mm X 55mm X 30mm

Package Content
1x Radioddity GA-510 Radio

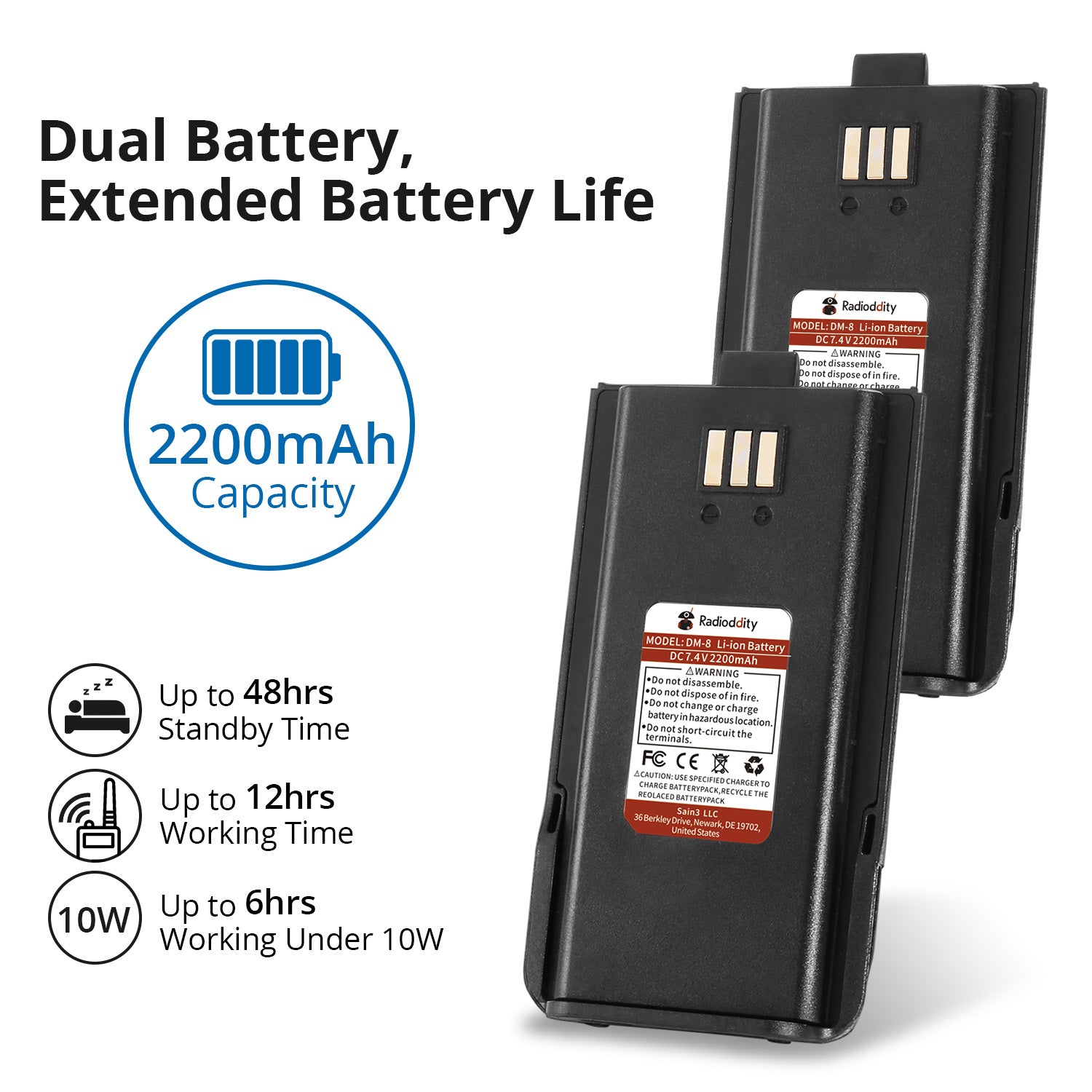

2x 2200mAh Battery
1x Dual Band Antenna
1x Programming Cable
1x Desktop Charger
1x Adapter
1x Belt Clip
1x Wrist Strap
1x Earpiece
1x User Manual

2020 December QST Review
