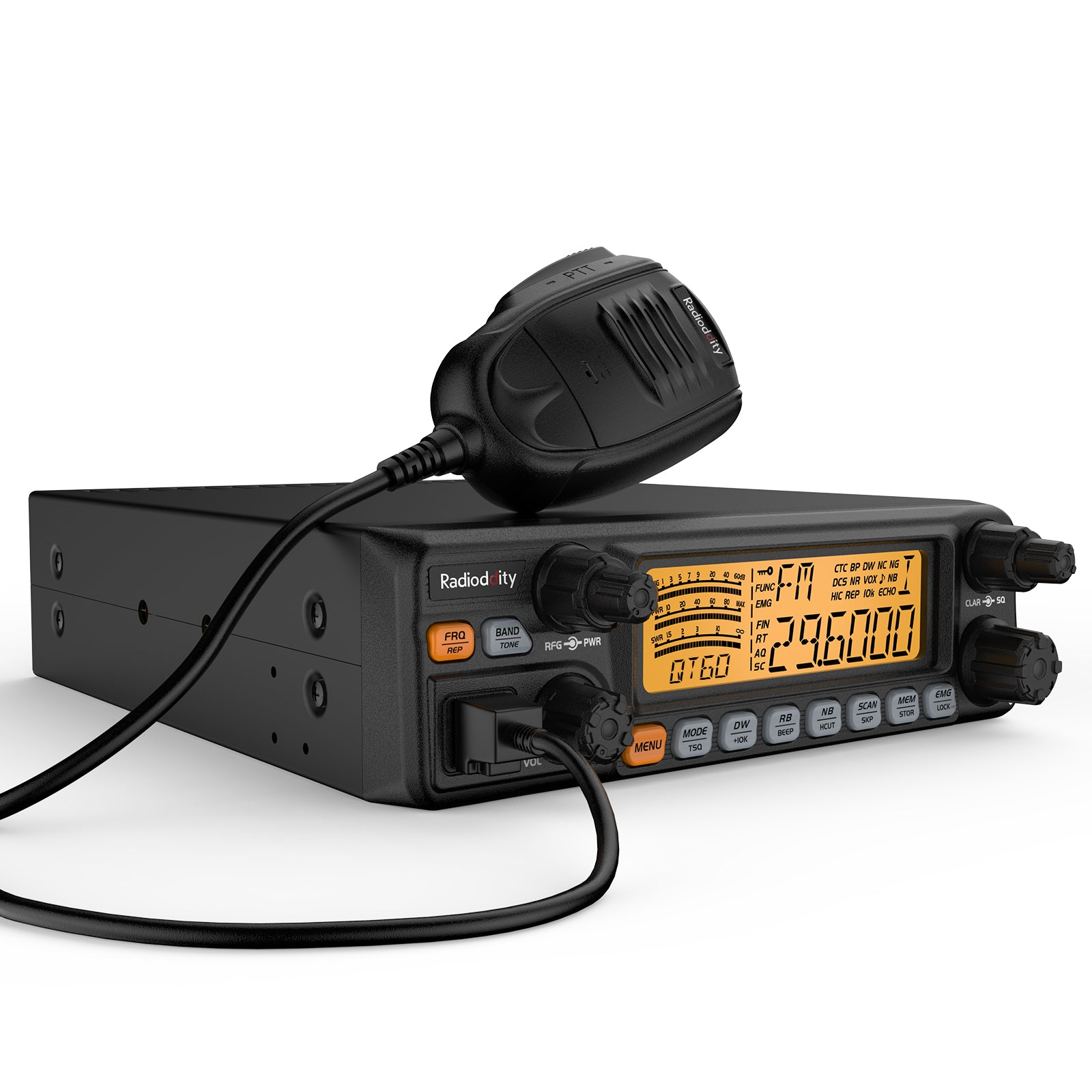

Elevate your communication game with the Radioddity QT60 PRO, a versatile and robust 10-meter radio that delivers 60W of high-power performance. Whether you're an amateur radio enthusiast, an off-road adventurer, or a first responder, the QT60 PRO offers unmatched capabilities to keep you connected in various scenarios. (FCC ID: 2AN62-QT60)
New Features from QT60 Pro
1. Add 136-174Mhz FM receiver
2. Add display dimmer control (5 levels).
3. Add SSB TX audio bandwidth control
4. Add CTCSSS/DCS scan
5. Add CW function (needs DIY)
Others
1: CTCSS/DCS frequency display, instead of a tone code.
2: RX AGC time fast/slow
3: No RX mute when tuning in VFO mode.
4: FM deviation select 2.5 KHz and 4 KHz
5: Audio path selection (used when interfacing with a computer for digital modes or with 3rd party microphones)
6: VHF RX VFO capable of tuning the entire VHF band, rather than just WX channels.
Functions & Features
- Big LCD display frequency and all kinds of information
- FM, AM, USB, LSB, CW, PA mode
- Frequency tuning step: 100Hz, 1KHz, 5KHz, 10KHz, 100KHz, 1MHz
- +500Hz/5KHz CLARIFlER Adjustment (R/T/R+T selectable)
- Dimmer control
- SSB TX audio bandwidth control
- CTCSSS/DCS scan
- Flexible menu function and PC program software
- ECHO function
- SQ, ASQ function (FM and AM mode only)
- RF gain adjustment
- RF PWR adjustment
- Scan function
- Programmable RB function
- NB/ANL function
- Dual-watch function
- Offset frequency function
- BEEP voice prompt
- +10KHZ function
- SIG, PWR, SWR function
- TOT function
- HI-CUT function
- EMG channel function
- SWR protection
- Power supply voltage protection
- Key-Lock function
- Six groups memory channel
- Model name customized function
- CTCSS/DCS code
- Enhanced VOX Functions (can support digital mode operation)
- TX & RX Background Noise Reduction
- Compatible with electronic and dynamic MIC-type
- WX weather channel with RX VFO mode (136-174MHz FM)
- Weather Alert
Stay connected with the dual watch feature. When activated, the screen displays the "DW" icon, indicating the simultaneous monitoring of two channels. This ensures you never miss crucial conversations or incoming transmissions, maximizing communication efficiency.
Prepare yourself for any weather condition with the built-in NOAA feature. With access to seven WX (weather band) channels, you can receive real-time updates and alerts to keep you safe and informed during your outdoor adventures.
Take control of your audio output with the microphone gain feature. With 36 levels of adjustability, you can easily fine-tune the microphone sensitivity according to your preference, making your voice heard loud and clear.
The CTCSS/DCS feature allows users to configure specific codes, ensuring that only individuals with the correct credentials can access their communication channel, providing a secure and confidential platform.
You can rest easy knowing that your radio is protected with SWR and voltage protection. This feature safeguards your device from damage caused by improper antenna installation and voltage fluctuations, ensuring its longevity and reliability.
You have full control over your communication experience with six frequency level options: 100Hz, 1KHz, 5KHz, 10KHz, 100KH, and 1MHz. You can customize your frequency settings via computer programming to meet your specific needs, allowing for maximum flexibility.
SPECIFICATIONS
GENERAL
Frequency Range: 28.000-29.700MHz(Programmable)
Frequency Band: A/B/C/D/E/F/G/H/I
WX channels: 162.400MHz, 162.475MHz, 162.425MHz, 162.450MHz, 162.500MHz, 162.525MHz, 162.550MHz
Channel: 40 default channels in each band (a total of 60 programmable channels per band)
Frequency Control: Phase-Locked-Loop Synthesizer
Frequency Step: 100Hz, 1KHz, 5KHz, 10KHz, 100KHz, 1MHz
Frequency Tolerance: ±5.00ppm
Temperature Range: -20℃ to +50℃
Microphone: with push-to-talk/UP/DN and coiled cord
Input Voltage: 13.8V
Dimensions(in/mm): 10.1(L)x7.8(W)x2.4(H) / 255(L)x200(W)x60(H)
Weight: 1.5kg
Antenna Connector: UHF, SO239
TRANSMITTER
Power Output AM PEP: 60W / FM: 50W / SSB: 60W(PEP)
Drain: 10A maximum(with modulation)
Modulation: AM/FM/USB/LSB/CW
Intermodulation Distortion: SSB: 3rd order, more than -25dB | 5th order, more than -35dB
SSB Carrier Suppression: 55dB
Unwanted Sideband: 50dB
Frequency Response: AM/FM: 300 to 3000 Hz | SSB: 300 to 3000Hz/4000Hz
Output Impedance: 50ohms, unbalanced
RECEIVER
Sensitivity
SSB: 0.25μV for 10dB(S+N)/N at greater than 1/2 watt of audio output
AM: 1.0μV for 10dB(S+N)/N at greater than 1/2 watt of audio output
FM: 1.0μV for 20 dB (S+N)/N at greater than 1/2 watt of audio output
Adjacent-Channel Selectivity: AM/FM: 60dB; SSB: 70dB
Image Rejection: More than 65dB
IF Frequency: AM/FM: 10.695MHz 1st IF, 455KHz 2nd IF | SSB: 10.695MHz
RF Gain Control: 45dB adjustable for optimum signal reception
Automatic Gain Control(AGC): Less than 10dB change in audio output for inputs from 10 to 100,000 microvolt
Squelch: Adjustable; threshold less than 1.0μV. | Automatic Squelch Control(only AM/FM)1.0μV
Audio Output Power: 3 watts into 8 ohms
Frequency Response: AM/FM: 300 to 3000Hz; SSB: 300 to 3000Hz
Built-in Speaker: 8 ohms, round.
External Speaker(Not Supplied): 8 ohms; disables internal speaker when connected
40 RX channels (VHF FM mode) can be programmed between 136-174MHz
Note: please note that the CW is a bonus feature that you may need to DIY the microphone to achieve it.
Recommended Accessories (not included in the package)
1.Radioddity
2. Xiegu External Speaker
3. RadioddityAntenna Magnet Mount
4. RadioddityProgramming Cable
5. RadioddityAntenna
6. RadioddityExternal Speaker
What’s in the box?
1 x QT60 PRO Radio
1 x Detachable Microphone
1 x Mounting Bracket
1 x Microphone Hanger
1 x Power Cable
1 x Spare Fuse(10A, 250V)
2 x Non-slip Mat
2 x Screw for Bracket
2 x Pad for Bracket
4 x Adjusting Screw
2 x Self-tapping Screw
2 x Pad
