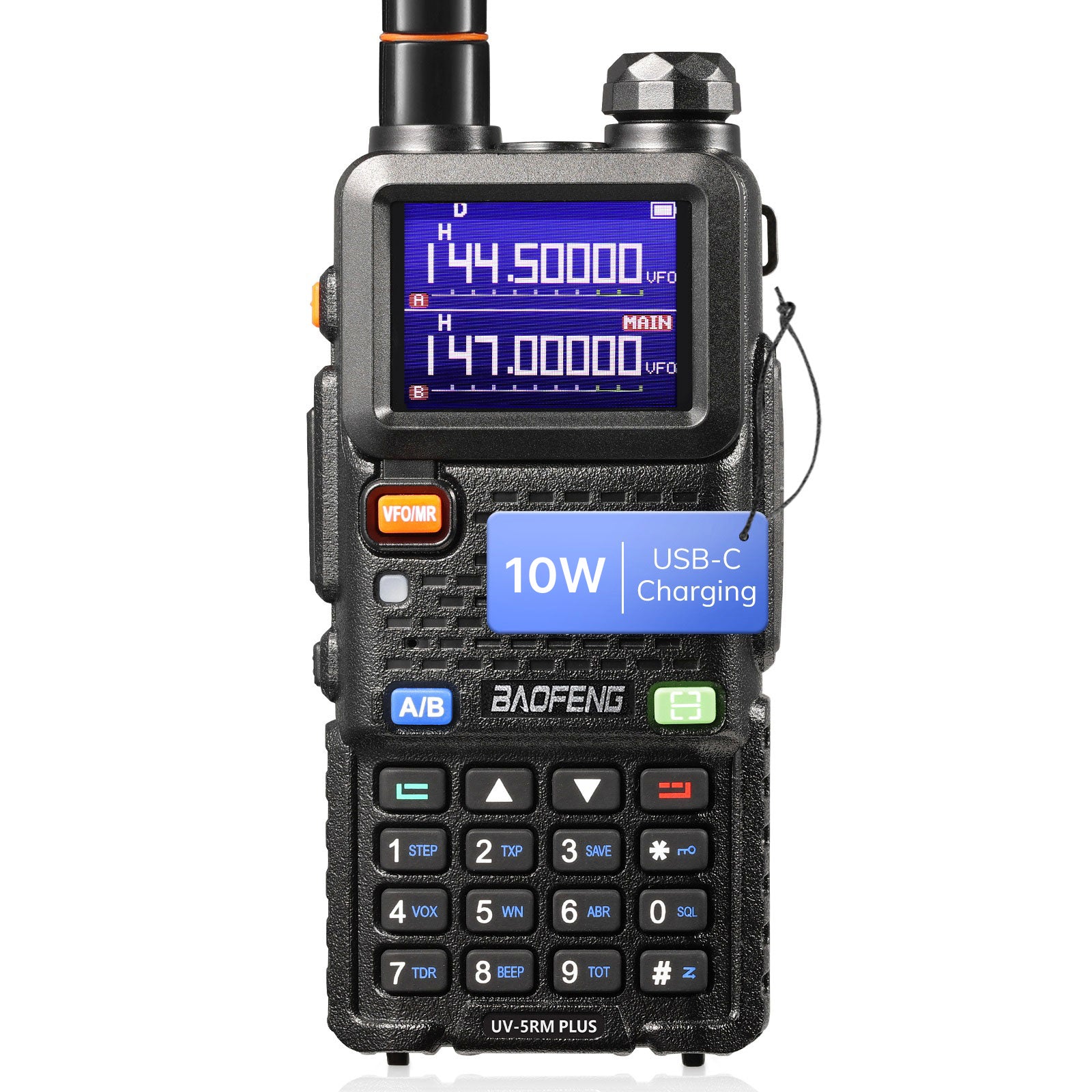

Baofeng UV-5RM Plus is a high-performance two-way radio that takes your communication experience to the next level. With its impressive 8W high power, this radio enhances the performance of through connection, ensuring clear and uninterrupted conversations. What sets this radio apart is its support for open-source firmware upgrades, allowing you to improve playability and expand new features as technology advances. Stay ahead of the curve with this future-proof device.

UV-5RM Plus VS UV-5R

UV-5RM Plus 10W, with a larger 1.77’’ color display, brings an expanded receiving frequency band covering aviation and police bands, an extended battery boost from 1800mAh to 2500mAh with USB-C charging, a new one-key copy frequency function, and a DTMF manual dial function.

ONE KEY FREQUENCY COPY

Press and hold the scan button, and place it near the radio you want to scan, upon radio transmission, UV-5RM Plus will display the frequency(±2.5 PPM), CTCSS or DCS tones, or ‘NONE’ if CTCSS or DCS is absent.

STAY WEATHER-READY

With the NOAA weather band scan and reception function, you can keep yourself safe during severe weather by receiving emergency alerts for hurricanes, tornadoes, floods, and other hazards.

VERSATILE CHARGING OPTIONS

Equipped with a Type-C charging port, this radio can be recharged from anywhere and anytime using various power sources such as a wall socket, power bank, car charger, or laptop, ensuring continuous communication.

Main Features
- Channel and frequency scan with three recovery methods: TO, CO, and SE
- Manageable power-on password protection
- Dual watch/reception and dual-band capabilities
- Stopwatch and alarm function
- Programmable display illumination via keypad
- Selectable high/low power modes
- Function beep on the keyboard
- Battery save mode
- Transmission time-out timer(TOT)
- Busy channel lockout and programmable repeater offset
- LED flashlight
- Ten levels of squelch (SQL) adjustment
- Roger Beep

Specifications
Transmission Frequency: VHF144-148 MHz & UHF 420-450 MHz [US version];
VHF144-146 MHz & UHF 430-440 MHz [EU version]
Receive Frequency: FM 88-108 MHZ;AM 108-136MHz(VFO-0nly),VHF 136-174MHZ,220-260MHz(VFO-0nly),UHF350-390MHz,400-520MHz(VFO-0nly),[EU FM 88-108MHZ: AM 108-136MHz(VFO-0nly), VHF & UHF]
Channel Spacing: 25.0KHz(Wide) / 12.5KHz(Narr)
Memory Channel: 999 Groups
Operation Voltage: DC 7.4V±10%
Transmission current: ≤2800 mA
Receive Sensitivity: 0.25μV (12dB SINAD)
Rated Audio Power Output: 1W @16 ohms
Receive Current: ≤380mA
Connection for Accessories: 2-pin Kenwood jack
Antenna Impedance: 50 Ohm

Antenna
Standard Antenna:
Antenna Gain: 2.0 dBi
Antenna SWR: 1.2
Frequency: 136-174/400-520 MHz
Antenna Connector Type: SMA-Female
Max Power: 10 Watts
Length: 8.3’’
Long Antenna:
Antenna Gain: 2.15 dBi
Antenna SWR:1.2
Frequency: 144/430MHz
Antenna Connector Type: SMA-Female
Max Power: 10 Watts
Length: 15.5’’

What’s in the box?
ONE-PACK:
1 x UV-5RM Plus Two-way Radio
1 x Li-ion Battery
1 x Standard Antenna
1 x Belt Clip
1 x Wrist Strap
1 x Type-C Charging Cable
1 x User Manual


One-Pack- With Desktop Charger & Soft Case:
1 x UV-5RM PLUS Radio
1 x 2500mAh Li-ion Battery
1 x High-gain Antenna
1 x Headset
1 x Belt Clip
1 x Wrist Strap
1 x Desktop Charger
1 x Soft Case
1 x User Manual


TWO-PACK With Programming Cable & Extra Two Long Antennae:
2 x UV-5RM Plus Two-way Radio
2 x Li-ion Battery
2 x Standard Antenna
2 x Belt Clip
2 x Wrist Strap
2 x Headset
2 x Adapter
2 x Type-C Charging Cable
1 x User Manual
1 x PC002 Programming Cable
2 x RD-771 Long Antenna


TWO-PACK With Extra Desktop Charger &Soft Case:
2 x UV-5RM PLUS Radio
2 x 2500mAh Li-ion Battery
2 x Standard Antenna
2 x High-gain Antenna
2 x Speaker Mic
2 x Soft Case
1 x Programming Cable
2 x Headset
2 x Belt Clip
2 x Wrist Strap
2 x Desktop Charger
1 x User Manual
