Description:

Portable wire antenna is a simple suite, contains all the necessary components. It is a simple and effective rapid deployment of shortwave antenna with light weight, small size, easy to carry and set up easily.

Functions:

1.Widely used in short wave, medium wave to listen to QRP radio emission.

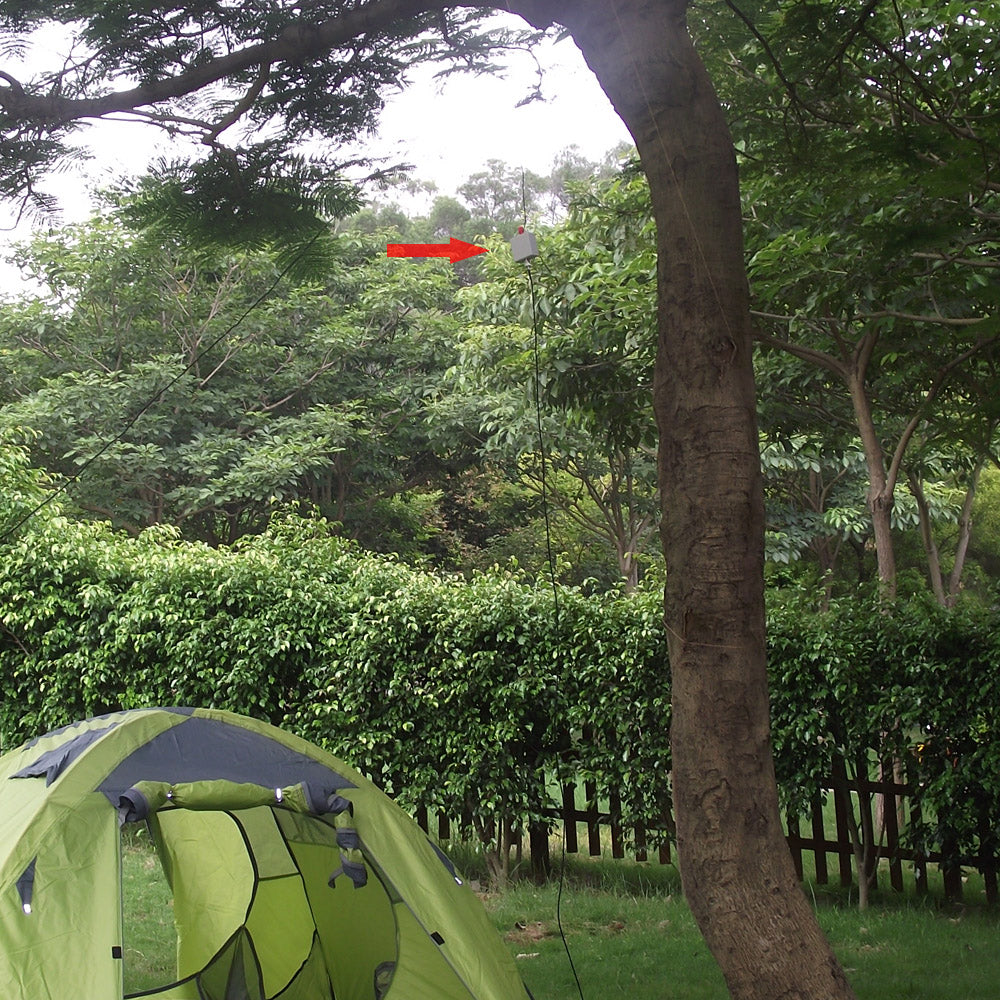

2.Suitable for camping, emergency communications, and other places of temporary construction. (if you want to permanently fixed construction you need to strengthen the anchor and Balun needs to be waterproof.)
3.Need to stay away from buildings, trees or other large objects. The ideal erection site is a space of about 25 meters.
4.If the space is too small, you can trim excess traction rope, but in the antenna oscillator and the ends of the support structure, each side shall not be shorter than 1 meter (3 to 4 feet). If it's too long, you can shorten the antenna oscillator. But it will reduce the efficiency of the antenna.

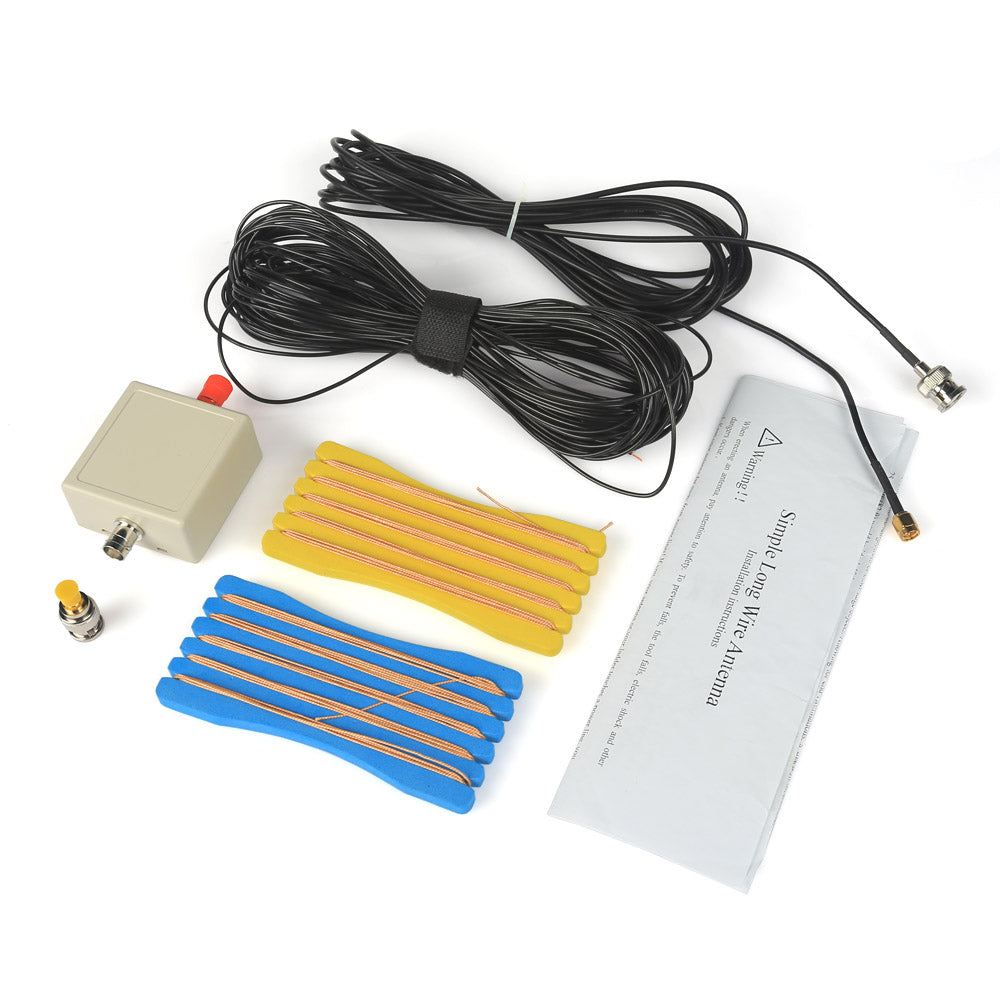

Package:

1 x Coaxial Cable 6 m(approx 20ft)
1 x  Halyard 6m(approx 20ft) x 2
1 x Antenna Element 16.2m(approx 53ft)
1 x Balun 9:1
