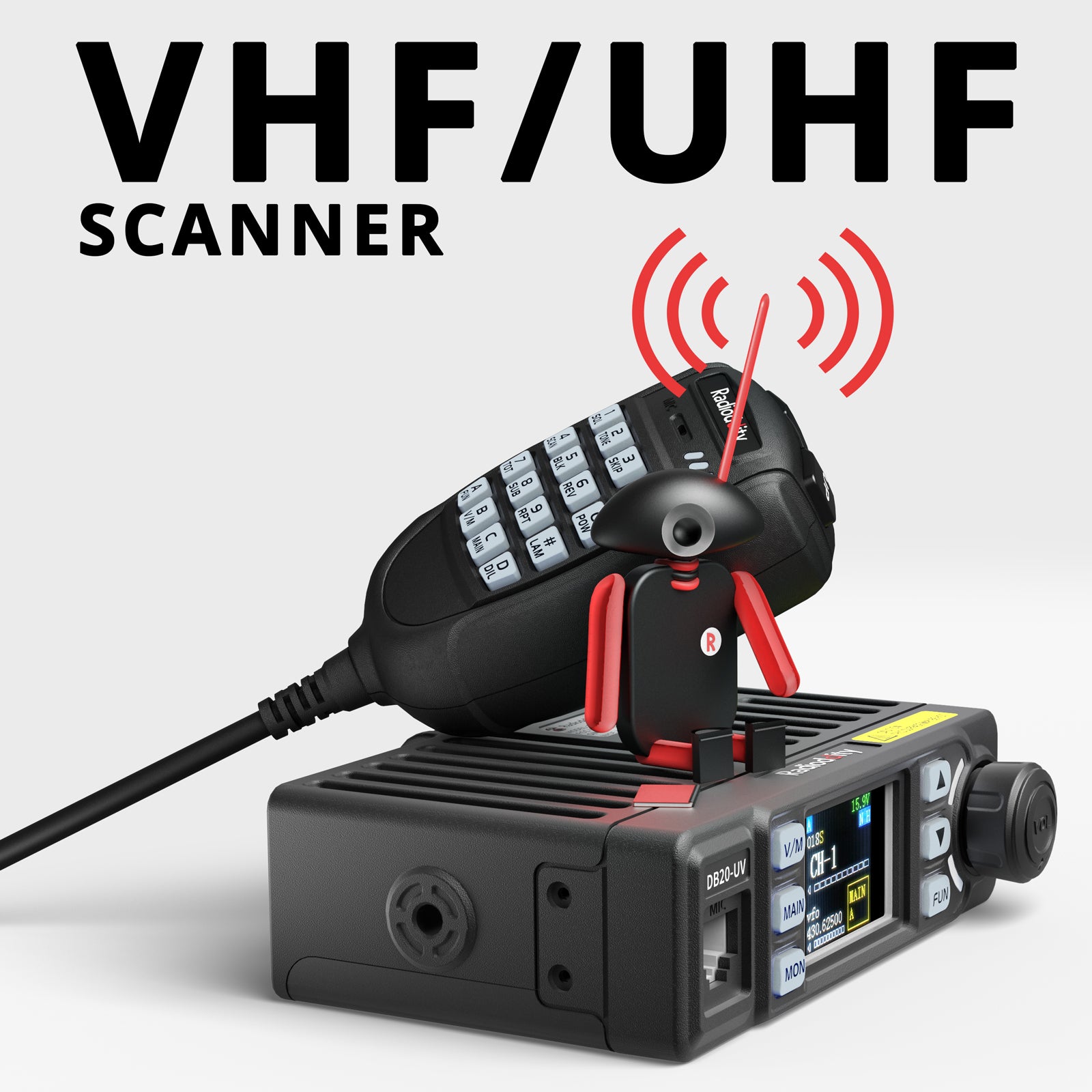

If you're looking for a tiny mobile radio that won't require much programming and is easy to install, DB20-UV is a good option.
DB20-UV is ultra-small and compact, you can place it on the center console, or hang it overhead above the rear view mirror. It is user-friendly in the car, easy to power it up with the cigarette lighter outlet. It's perfect for caravanning or going on a road trip (on-road or off-road).
Furthermore, its speaker sound is surprisingly crispy and loud.
![]() | ![]() | ![]() |
Sync Display The SYNC feature shows both the name and frequency, you can easily view the name of the channel and its frequency. DB20-UV embeds a large LCD color screen, and it's white text color helps read the info clear and quickly. | Work Seemlessly with Most UV Radios DB20-UV works well with all the UV handheld radios or mobile radios. They make high communication efficiency for camping! | Easy to Control with Mic Keys on the microphone can almost control all functions, so you don't need to look down or fiddle with the base to handle the radio when you’re on the trails, and either the driver or the passenger can easily take control of it and communicate. |
Features
- 51 CTCSS / 1024 DCS
- 1-9 VOX
- VOX delay
- BCL (Busy channel Lock)
- TOT (Time out timer)
- DTMF
- Squelch
- Scan pause time
- Adjustable brightness
- Tone burst
- Sub channel display
- Key beep
- 3 Channel display mode
- NC (Noise reduction)
Specifications
Frequency Range TX/RX: 144-146/430-440MHz
Channel Spacing 12.5K/25K
Channel Number 500 channels
Operating Voltage DC 13.8V±15%
Squelch Mode Carrier/CTCSS/DCS/5Tone/2Tone/DTMF
Frequency Stability ±2.5ppm
Operating Temperature -20°C ~ +60°C

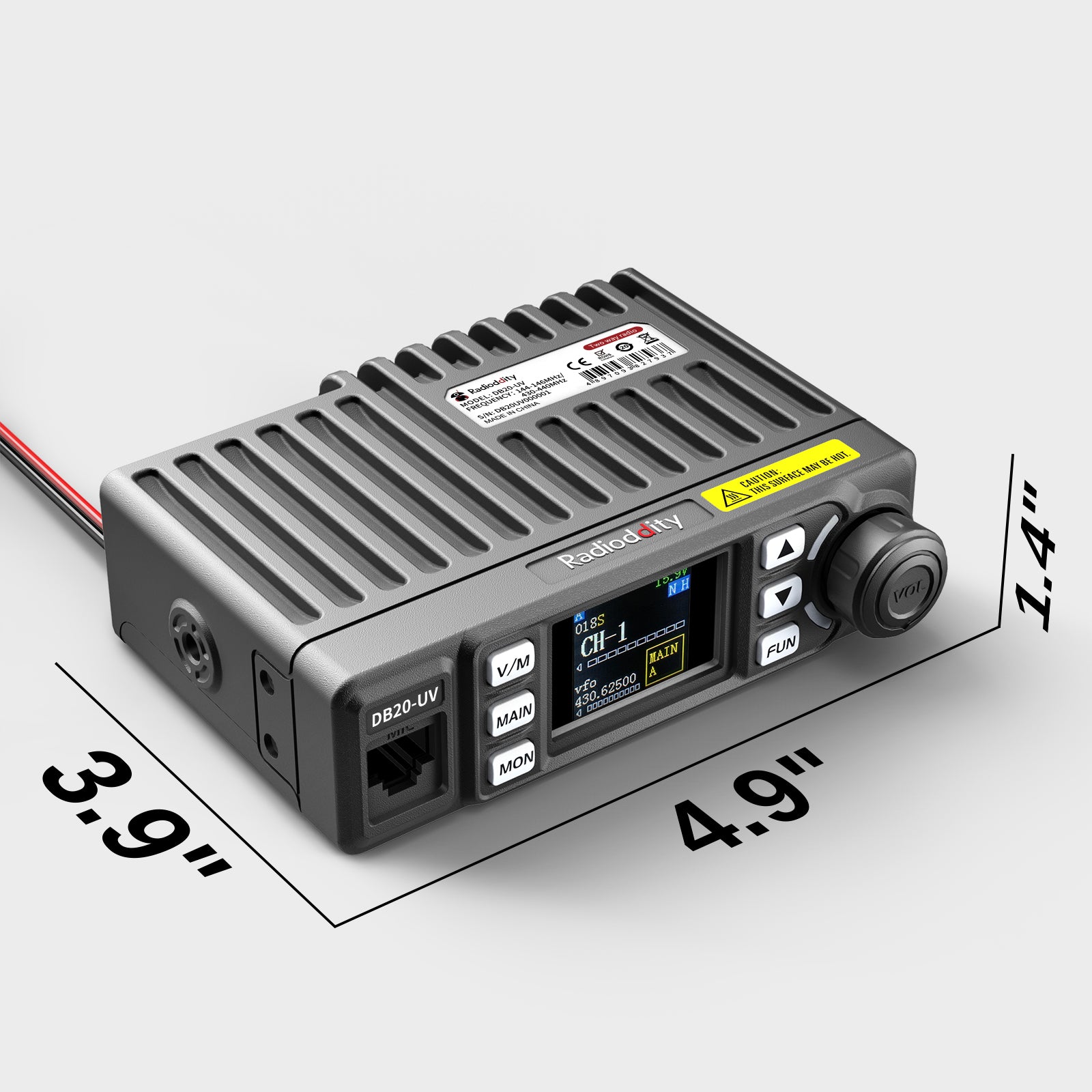

Dimensions(mm) 124x101x36
Weight 0.45kg (base station)
Power 20W
Antenna Connectot SO239 (Support PL259 antenna)
What's in the box?
1 x Radioddity DB20-UV
1 x Microphone
1 x Mobile Bracket
1 x Programming Cable
1 x Mic Holder (with 2 screws)
1 x Fuse(10A 250V)
2 x Bracket Screw
2 x Non-slip Mat
2 x Pads
2 x Fixing Screws
