Product Function:
1000 channels
Remote kill/stun/activate
Voice prompt
Power-on protection
Color LCD display
Text messages in digital mode
Encryption function
Built-in CTCSS/DCS
Up to 1000 channels
Priority scan
Complying with digital protocol ETSI TS 102 361-1,-2,-3
DTMF decoding and encoding
Updated software available for new features
Private call, group call, all call in digital mode
Operate in both Digital & Analogue mode
Allows easily migrate from analog to digital
Provide clearer voice communications in digital mode, throughout the coverage


Product Specification:

General:
Frequency range: VHF:136-174MHz
Channel: 1000 Channels
Channel Spacing: 12.5KHz
Operating Voltage: 7.5V
Battery Capacity: Li-ion 2000mAh
Operating Temperature: -30°C+60°C
Antenna Impedance: 50 ohm
Audio Output Power: <=1000mW
Dimension(H*W*D): 131*61*36(Not Including Antenna)
Weight: 258g

Transmitter:
Output power: <=5W(HI) , <=1W(Low)
Frequency Stability: ±1.0PPM
Adjacent Channel Power: <=-60dB
Free Time Slot Power: <=57dBm
Hum and Noise: -40dB12.5KHz
Spurious Radiation: Atenna: 9KHz-1GHz <=-36dBm; 1GHz-12.75GHz <=-30dBm
FM Modulation Mode: 12.5KHz: F3E
4FSK Digital Mode: 12.5KHz(data only):7K60FXD; 12.5KHz(data +voice):7K60FXE
Modulation Maximum Deviation: 2.5KHz 12.5KHz
Nonactive Slot Power: -57dBm
Digital Protocol: ETSI TS 102 361-1 -2 -3
Vocoder Type: AMBE+2TM
Audio Response: +1dB~-3dB
Modulation BER(Bit Error Rate): <=5%

Receiver:
Analog sensibility: 0.35µV/-116dBm(20dB SINDA); 0.22µV/-120dBm(Type)
Digital sensibility: 0.3µV/-117.4dBm (BER 5%); 0.22µV/-110dBm (BER 1%)
Co-channel Rejection: >=-12dB
Adjacent Channel Selectivity: TIA603C: 65dB ETSI: 60dB
Spurious Response: TIA603C:75dB ETSI:70dB
Rated audio power: 1W
Audio response: +1dB~-3dB
Rated audio distortion: 3%(Type)
Spurious Radiation: Antenna:9KHz-1GHz <=-57dBm; 1GHz-12.75GHz <=-47dBm

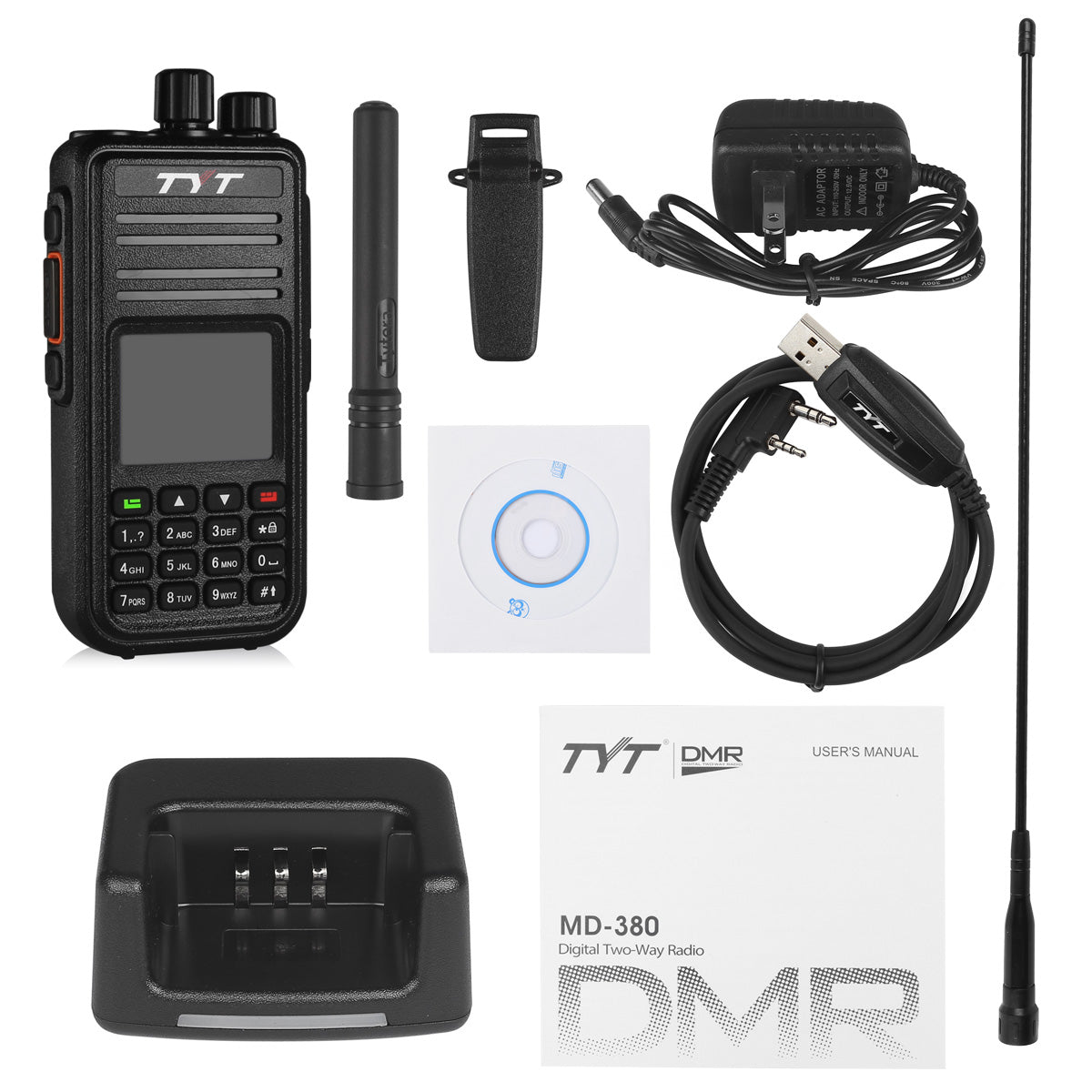

Package Content:

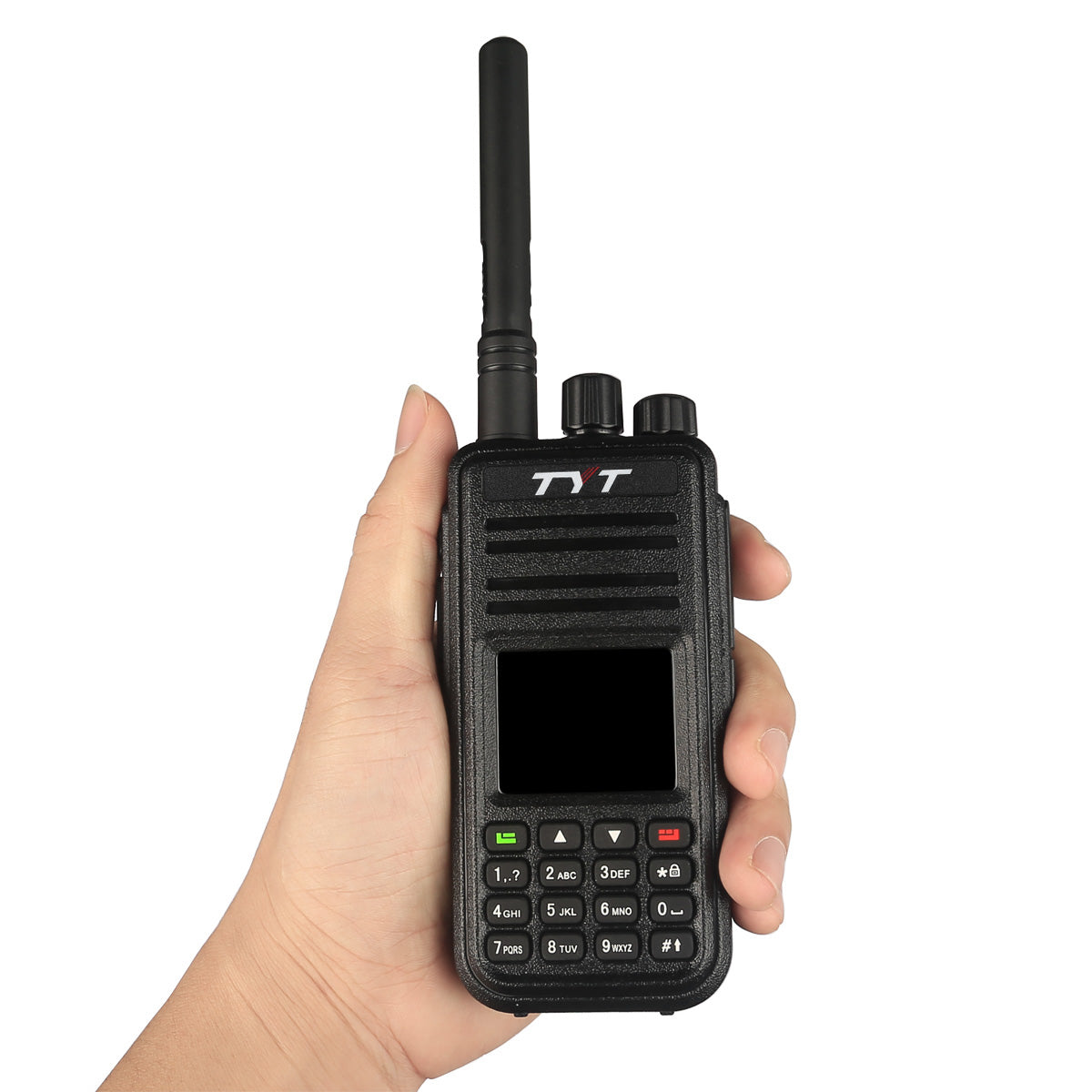

1 x TYT MD-380 VHF Digital Mobile Radio (DMR)
2 x Antenna

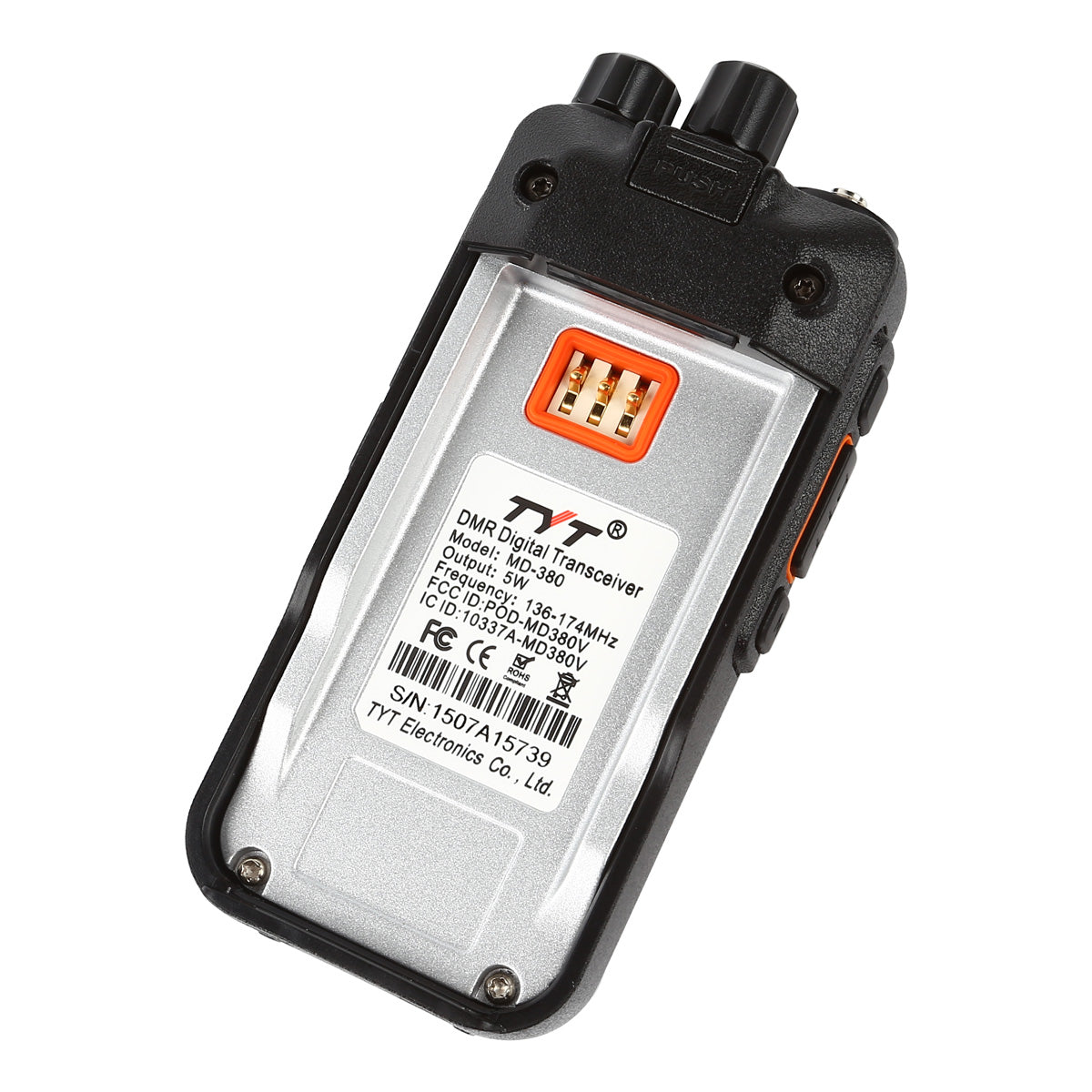

1 x Li-ion Battery 2000mAh
1 x Belt Clip
1 x Charger
1 x Adapter
1 x User Manual
1 x Programming Cable & CD
