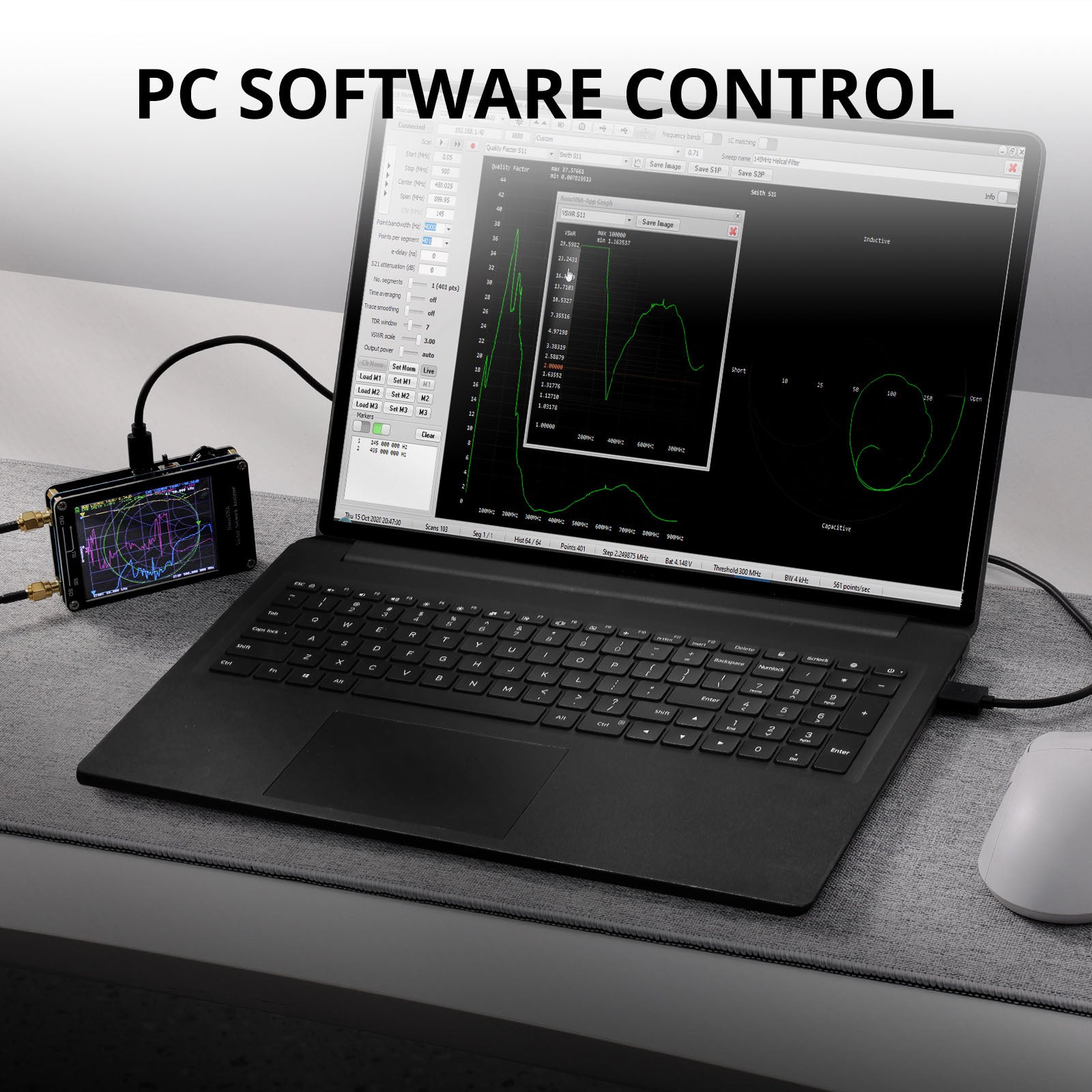

The NanoVNA-H Network Analyzer (Upgraded V3.6 Hardware) is a compact yet powerful tool for RF analysis, covering a wide frequency range from 10kHz to 1.5GHz. Perfect for testing antennas, measuring SWR and impedance, or performing signal sweeps, it offers fast, accurate, and stable results. Equipped with a USB-C port for quick charging and easy PC connectivity, it allows for data export and enhanced control via software. Whether you're a radio hobbyist, RF technician, engineer, or educator, the NanoVNA-H delivers professional-grade performance in a portable, user-friendly design.
Specifications

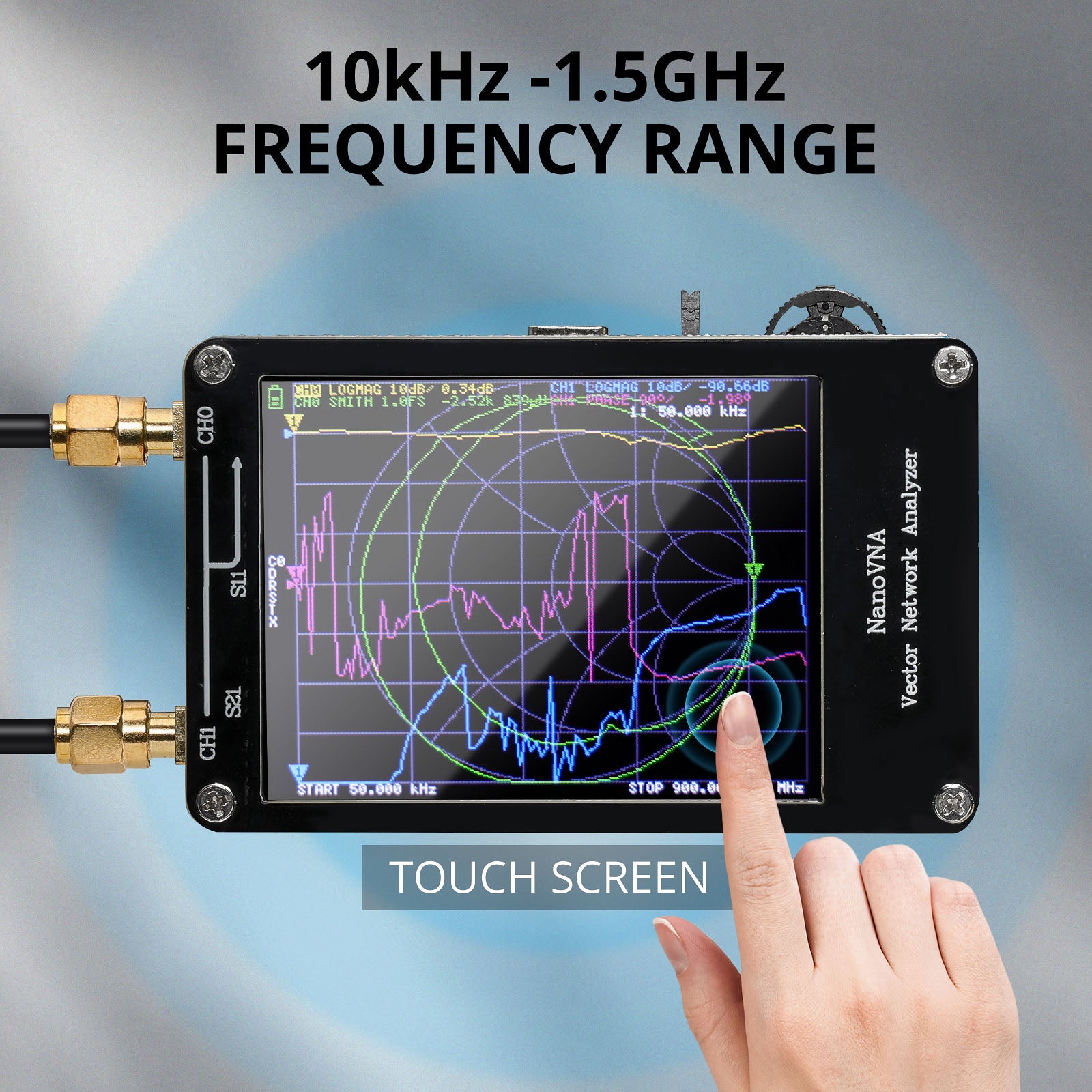

Frequency Range: 10kHz-1.5GHz
Display: Touchscreen
Battery: 650mAh Rechargeable Li-ion

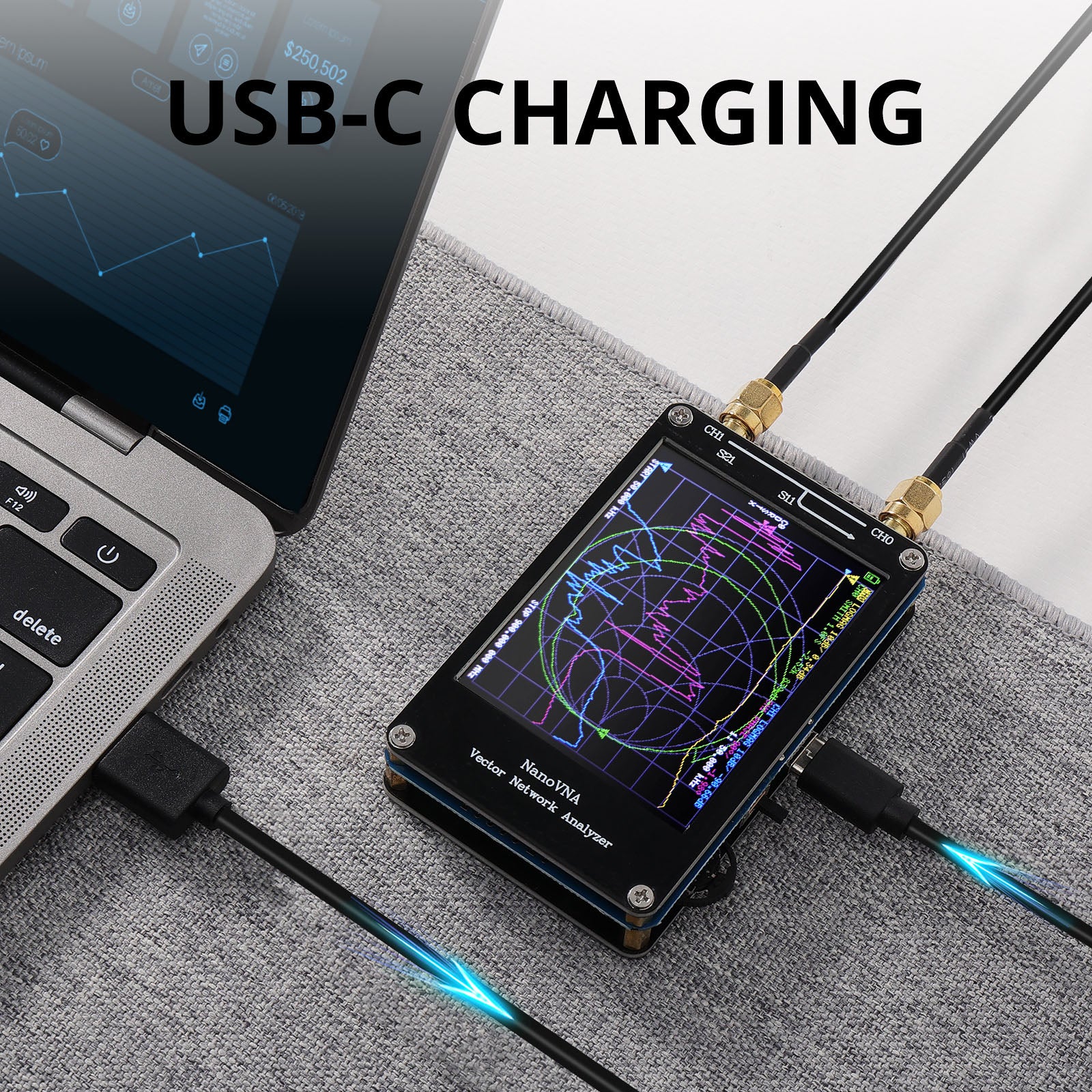

Charging: USB-C

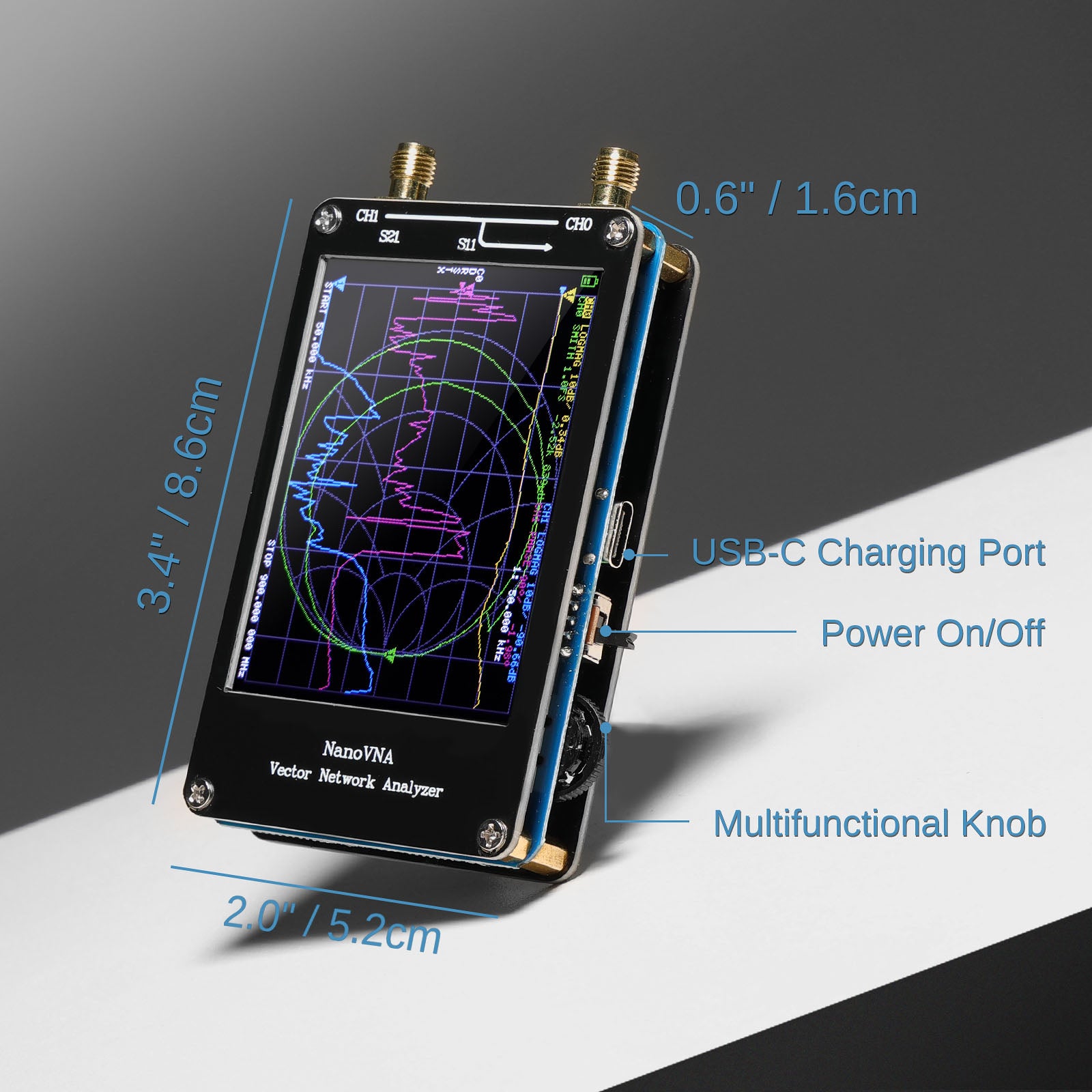

Dimensions:3.4" × 0.6" × 2.0" / 8.6cm×1.6cm×5.2cm
What’s in the box?
1 x NanoVNA-H Analyzer
2 x RF Cable
1 x SMA-F to SMA-F Connector
1 x SMA Open Calibration Standard
1 x SMA Short Calibration Standard
1 x SMA Load Calibration Standard
1 x USB-C Cable
