LATEST FIRMWARE: 2024.09.23 | to learn about all the update logs.

--- --- --- ---

X6100 is an ultra-portable shortwave transceiver. It adopts the SDR software radio platform architecture of excellent performance, which carries powerful baseband and RF unit, integrating rich and diversified operating functions, bringing you a brand-new recognition and experience on amateur radio. With its compact structure and tiny appearance, you can immediately set forth on a journey with it, get close to nature and enjoy the fun of outdoor communication.
　

Features:
- SDR Structure
- HF/50MHz Full Mode (supporting data communication)
- Transmitting Power: External power supply: 10W | Battery power supply: 5W
- 4" (3.46 x 2.13in) High-resolution Color Screen, 800*480

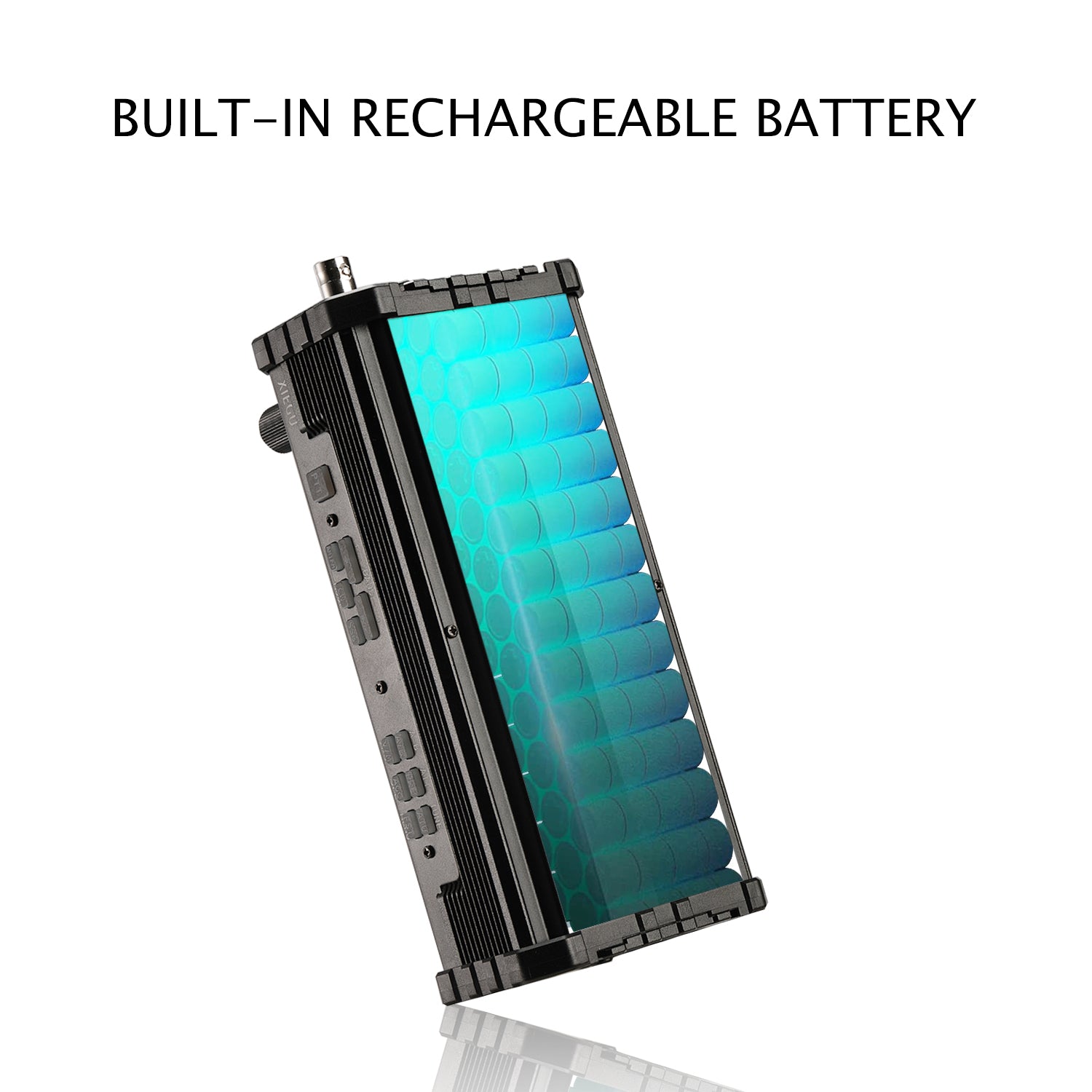

- Built-in 3000mAh Rechargeable Lithium Battery
- Built-in Automatic Antenna Tuner
- Integrated SWR Scanner & Voice Call
- Integrated Modem, Preset message, CW Automatic Call
- Built-in Bluetooth/Wifi function, enable wireless audio/keyboard/mouse operation
- Integrated USB control/transmission, supports USB HOST
- Built-in high-stability TCXO internal clock source

*Note:
1. The 80-meter or 3.5 MHz band is a band of radio frequencies allocated for amateur radio use, from 3.5 to 4.0 MHz in IARU Region 2 (consisting mostly of North and South America), and generally 3.5 to 3.8 or 3.9 MHz in Regions 1 and 3 (the rest of the world) respectively.
2. The 40-meter or 7-MHz band is an amateur radio frequency band, spanning 7.000-7.300 MHz in ITU Region 2, and 7.000-7.200 MHz in Regions 1 & 3.

Note that the center pin is positive.
Note that as for the included power cable, the white one is positive and black one is negative.
　

What’s in the box?
1 x Xiegu X6100 Transceiver
1 x USB Type-C Data Cable
1 x Multi-function Speaker Mic
1 x Power Adapter
1 x Charging Cable
1 x User Manual
　

How to connect X6100 to XPA125B Amplifier?

X6100 can expand the output power to 100W when connected to the XPA125B power amplifier through a (not included).

After connection, X6100 can automatically control the band switching of XPA125B. At the same time, ALC control will be established between the two machines. When the power output from X6100 to XPA125B exceeds the limit, it will be automatically reduced, so that the output power of XPA125B is constant at about 100W.

We recommend you set the output power of X6100 to ≤2.5W to protect the power amplifier equipment.
　

Recommended Accessories (not included in the package)
1. 100W Power Amplifier &
2. Digital Audio Noise Filter
3. 40m/20m/15m/10m 4-band Vertical Antenna
4. External Stereo Speaker
5. Raddy Multi-function
6. 100W Portable Power Station
7. Carrying Case
8. Radioddity X6100-H1 Protective Bracket
9. Xiegu X6100 Spare Parts Kit
